Description

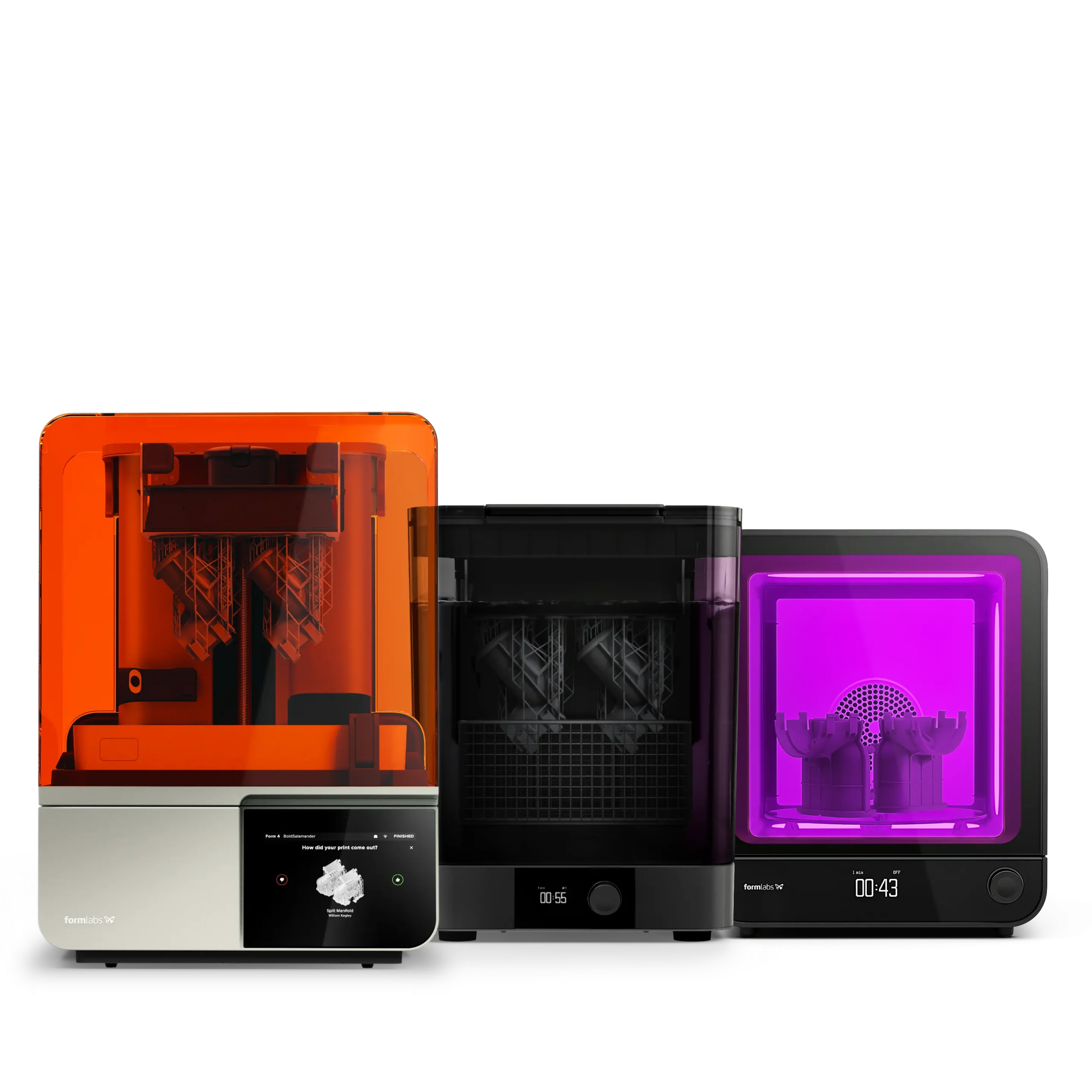

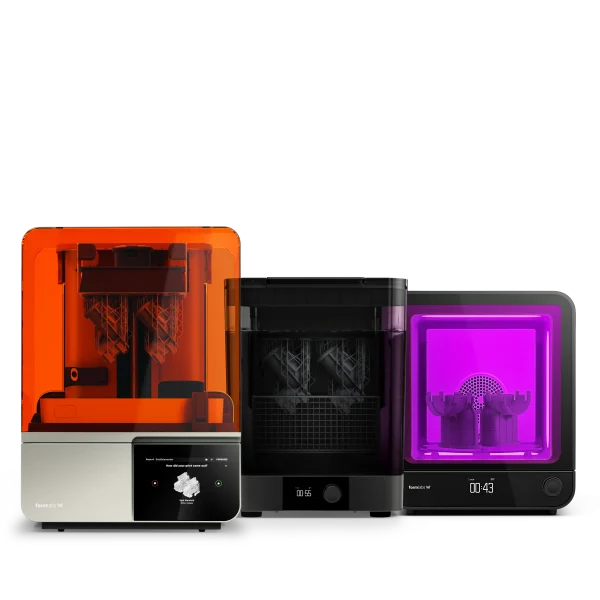

Form 4 Complete Package Includes:
Form 4 Printer, Resin Tank, Mixer, Build Platform, Finishing Kit, Form Wash, Form Cure, Solvent Pump
Get more done with most prints in under 2 hours
The Backlight Unit generates a uniform area projection of an ultra-high power light using 60 LEDs and collimating lenses. It cures resin quickly and precisely, delivering blazing fast print speeds with excellent print quality and accuracy anywhere on the build platform.
Maximum Print Speed¹ – 100 mm/hour
Typical Dimensional Tolerances³
1-30 mm features: ±0.15% (lower limit: ±0.02 mm)
31-80 mm features: ±0.2% (lower limit: ±0.06 mm)
81-150 mm features: ±0.3% (lower limit: ±0.15 mm)
Build Volume (W x D x H) ⁵
200 × 125 × 210 mm
5.25 litres
XY Resolution⁷
50 µm with pre-tuned anti-aliasing for subpixel resolution
Superior fine feature performance and sharp features compared to the Form 3 Series
Layer Thickness⁸
25–300 µm
